NEW
S1950Z LED Wash
BEAM | PIXEL | WASH
Overview
The S1950Z LED Wash is built with 19 x 60 Watt Osram RGBW LEDs, and by using the high efficiency optics, it provides an amazing multi-beam effect at 3.95° angle. In combination with the Pixel control and built-in animation effects, it offers a great animation effect. With its well-designed zoom optics, the fixture also covers the wash projection up to 50°. The cooling is carefully designed to work with the high efficient electronics to master the cooling for such a high output in a small sized housing.
Features
- 19 x Osram® 60W RGBW LEDs
- 3.95 ° ~ 50° wide range for beam & wash
- Ultra fast Zoom & Pan/Tilt effect
- Dual Ethernet ports for switch & bypass
Light Source
- 19 x Osram® 60W RGBW LEDs
- 13,100 Lumens output
- Led Life Expectancy: approx. 50.000 hours
Optical System
- Efficient optical system, ratio 12 :1
- Zoom range 3.95° - 50°
- Linear & fast motorized zoom
Functions
- Full Pixel Control
- 0-100% Linear dimming
- 5 Selectable dimmer curves + 3 dimmer speeds.
- Selectable PWM Modes, flicker-free
- Pre-programmed random strobe & pulse effects
- Built-in Pixel Animation effects for easy programing of all pixels
- 2 x Ethernet ports for switching and bypass.
- Built-in Battery for easy fixture setup.
Movement
- High precision stepping motors
- 16-bit Tilt control
- Position Feedback, auto correction.
- Pan / Tilt movement range: 540° / 270°
Thermal
- Maximum ambient temperature: 45° C (113° F)
- Minimium ambient temperature: -10° C (14° F)
- Heat Pipe heat dissipation w/ forced air cooling
- Adaptive temperature control for highest efficiency
- 5 selectable fan modes
- Fan monitoring / RPM feedback
Control and programming
- Setting & Addressing: 2.8" LCD with 5 navigation input buttons
- Protocol: USITT DMX-512, ArtNet & sACN
- DMX-RDM compatible
- Optional wireless DMX (CRMX Timo 2 / W-DMX)
- 5 DMX protocol modes
- Control channels: 18/ 24 / 40 / 81 / 114
- Stand-alone mode
- DMX In/Out: XLR-5, Ethernet
Electrical Specification
- Electronic switching power supply with auto-sensing, Active PFC
- Input voltage: 100-240 V, 50/60 Hz
- Max. power consumption: 1300 W
- Power in connector: Neutrik powerCON True1

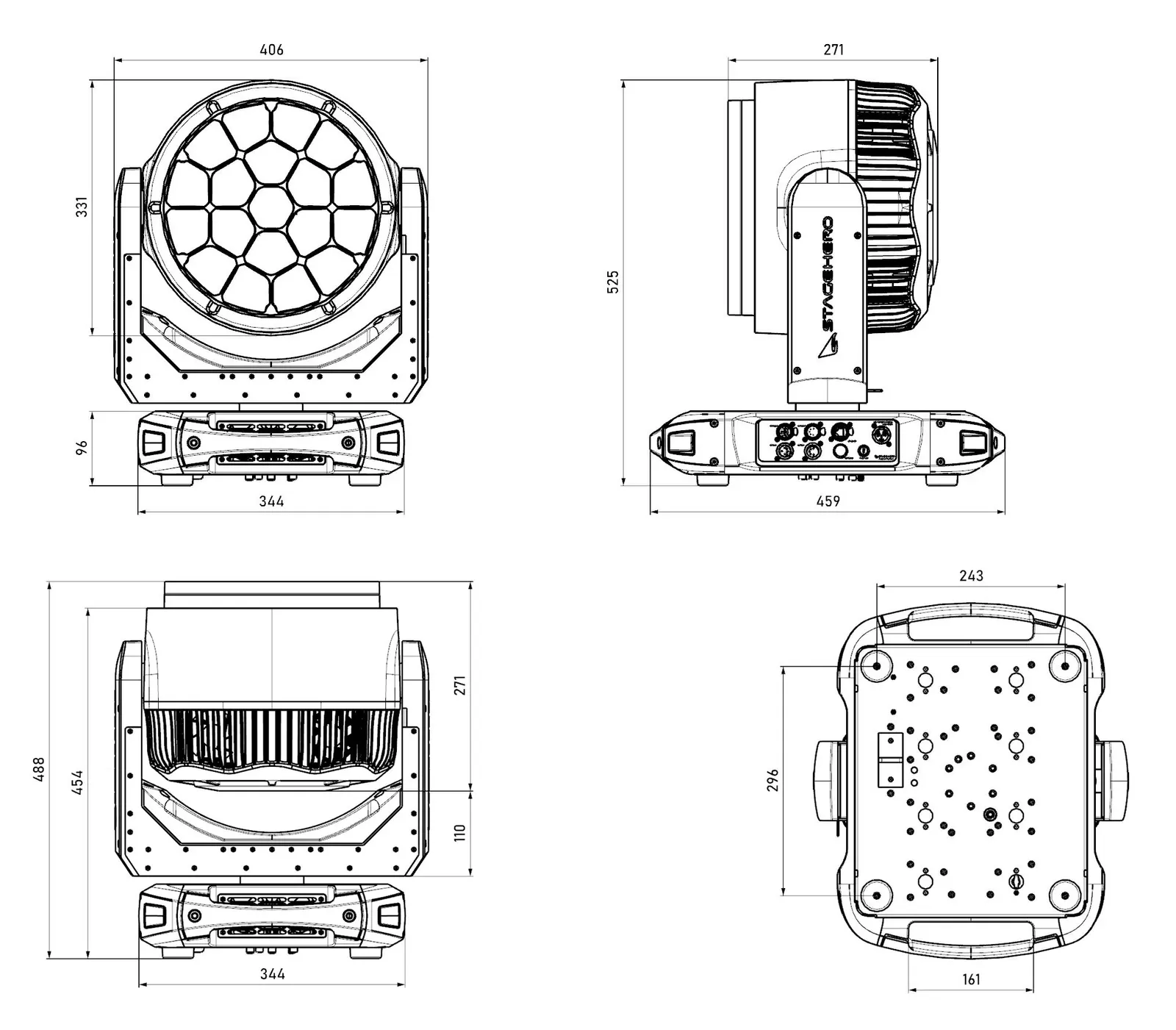

Mechanical Specification
- Height: 525 mm
- Width: 459 mm
- Depth: 344 mm
- Weight: 21.2 kg
Rigging
- 2 x Omega ¼ turn brackets
- 4 mounting points
- 1 attachment points for safety wire
Included accessories
- 1 x Omega brackets
- 1 x Power cable with Neutrik PowerCon True1 connector
