NEW

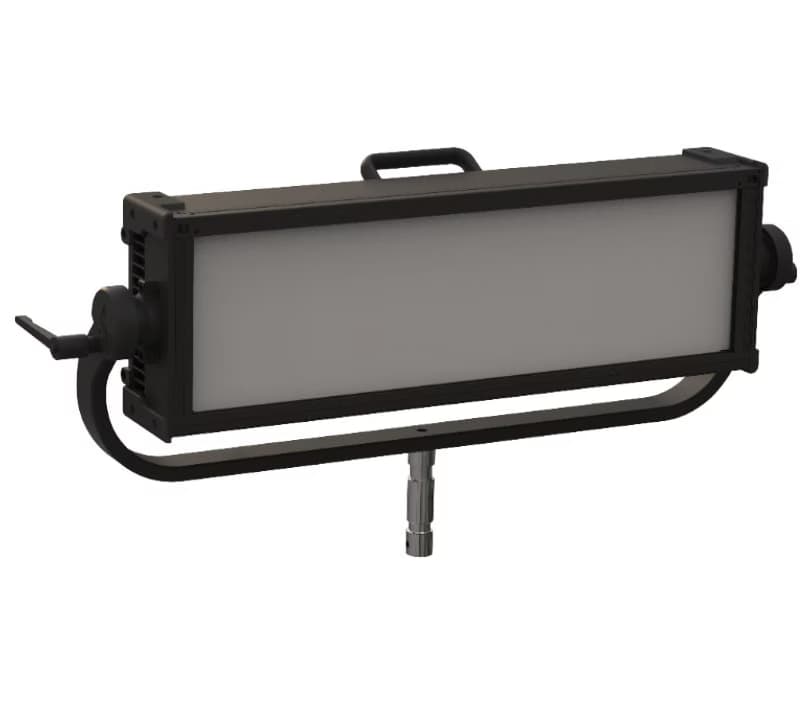

S400-C5 LED Color Panel

IP65 | STUDIO | SOFT LIGHT

Overview

The S400-C5 LED Color Panel provides a soft & homogenous light effect in 100° wide angle projection. It offers the high CRI/TLCI index often needed for studio and tv filming, with adjustable CCT range from 2,000K to 10,000K and Green/Magenta tint tune. It also packs a smart thermal and droop compensation to ensure the light quality is consistent in hours of operation. With the battery support & Lumenradio wireless DMX module, accompanied with the compact IP65 housing design, it is very flexible to be used in different lighting applications with ease.

Features

  • 384 x Osram® LEDs (R/G/B/W/Y)
  • CRI Average >95 / TLCI Average >95
  • Adjustable CCT from 2,000K ~ 10,000K with Green / Magenta tune.
  • Built-in LEE/Rosco GEL mode and lighting Effect.
  • On board & Extended controller, with Master/Slave.
  • Supports Battery operation for 24V ~ 48V Input.

Light Source

  • 384 x Osram® LEDs (R/G/B/W/Y)
  • 5 Meter @ 492 lx
  • CRI Average >95 / TLCI Average >95
  • Led Life Expectancy: approx. 50.000 hours

Optical System

  • Wide / soft projection
  • Beam angle 100°

Functions

  • Adjustable CCT from 2,000K to 10,000K
  • Green/Magenta tint adjustable.
  • Adjustable PWM freq. 600 to 30,000 Hz
  • Smart thermal and LED control for consistent output
  • Built-in LEE/ROSCO GEL mode & Light FX.
  • Extended controller & Master/Slave control.
  • 8/16 bit High-resolution/smooth dimmer

Movement

  • Fixture manually adjustable on Yoke (Tilt 360°)

Thermal

  • Maximum ambient temperature: 45° C (113° F)
  • Minimium ambient temperature: -10° C (14° F)
  • Adaptive temperature control for highest efficiency
  • 5 selectable fan modes

Control and programming

  • Setting & Addressing: 2x16 characters LC display & 4 buttons + 3 encoder
  • Extended controller for on-board control
  • Protocol: USITT DMX-512
  • DMX-RDM compatible
  • Wireless DMX (CRMX Timo 2 / W-DMX)
  • 16 DMX protocol modes
  • Control channels: 7, 7, 9, 10,10, 10, 11, 12, 13, 14, 16, 17, 17, 19, 20, 21
  • 3-editable programs, each up to 25 steps
  • Stand-alone mode
  • DMX In/Out: XLR-5

Electrical Specification

  • Electronic switching power supply with auto-sensing, Active PFC
  • Input voltage: 100-240 V, 50/60 Hz
  • Max. power consumption: 440 W
  • Power in / connector: Neutrik powerCON True1
  • Battery operation 24V-48V input

Mechanical Specification

  • Height: 360 mm (with Yoke)
  • Width: 860 mm
  • Depth: 140 mm
  • Weight: 12.5 kg
  • IP65

Rigging

  • 1 Omega ¼ turn brackets
  • 1 attachment points for safety wire
  • Junior Pin Adapter

Included accessories

  • 1 x Omega brackets
  • 1 x Power cable with Neutrik PowerCon True1 connector
  • 1 x Yoke with Junior Pin adapter
