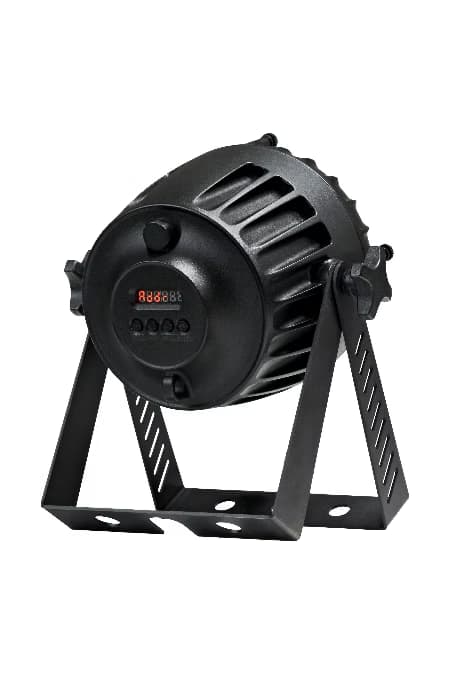

MiniBeam LED Spot

IP67 | Compact Housing

18° | 58° Diffusor Kit

(Included)

18° | 58° Diffusor Kit

Overview

MiniBeam LED Spot is one of the most compact fixture that you can find yet packed with a decent power in it. Powered by 4x 15-Watt Osram RGBW LEDs and a specially designed 8° beam angle optics, the PAR36 LED Spot is ready to shine with a tight beam. By the design of IP67 protection class, the fixture is ready to be used either indoor or outdoor. The built-in smart boot mode and programing system provide a smart way to use the fixture with or without a controller for ease of use.

Features

  • 4 x 15 Watt Osram RGBW LED
  • Beam angle: 8 °, with 2 diffusor kit
  • Smart boot mode & programming system
  • IP67 Protection Class with compact housing

Light Source

  • 4 x 15W Class RGBW LED
  • Rated lumen output: 1.100 lm
  • LED Life Expectancy: approx. 50.000 hours

Optical System

  • Beam angle 8°
  • 2 Easy mount diffusion kit

Functions

  • RGBW 8-bit color mixing
  • High resolution dimmer 0–100%
  • Virtual color wheel with 39 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K, 7.200 K and 8.000 K)
  • Selectable dimmer curves
  • Selectable PWM Modes, Flicker-Free
  • Strobe with variable speed (max. 20Hz )
  • Pre-programmed random strobe & pulse effects
  • Smart boot mode and program/static system
  • Multi Master/Slave program play simultaneously up to 3 programs

Thermal

  • Maximum ambient temperature: 40° C (104° F)
  • Minimium ambient temperature: -10° C (14° F)
  • Convected cooling with adaptive temperature control for efficiency

Control and programming

  • Setting & Addressing: 7 segment LED display & 4 input buttons
  • Protocol: USITT DMX-512
  • 6 DMX protocol modes
  • Control channels: 2, 3, 4, 5, 6, 8
  • 3-editable programs, each up to 25 steps
  • Stand-alone mode
  • Master/Slave program play
  • DMX In/Out: XLR-3

Electrical Specification

  • Electronic switching power supply with auto-sensing
  • Input voltage: 100–240V AC, 50/60 Hz
  • Max. power consumption: 45 W

Rigging

  • Centered Ø12mm hole in bracket
  • Preparation for one omega bracket
  • 1 attachment point for safety wire

Mechanical Specification

  • IP67 rating
  • Height including bracket: 231.8 mm (9.12")
  • Height without bracket: 153.8 mm (6.05")
  • Width: 205.6 mm (8.09")
  • Depth: 158 mm (6.22")
  • Weight: 2.7 kg (5.95 lbs)

Included accessories

  • Diffusion filter 18° & 58°
  • eventCON/Schuko + XLR-3
