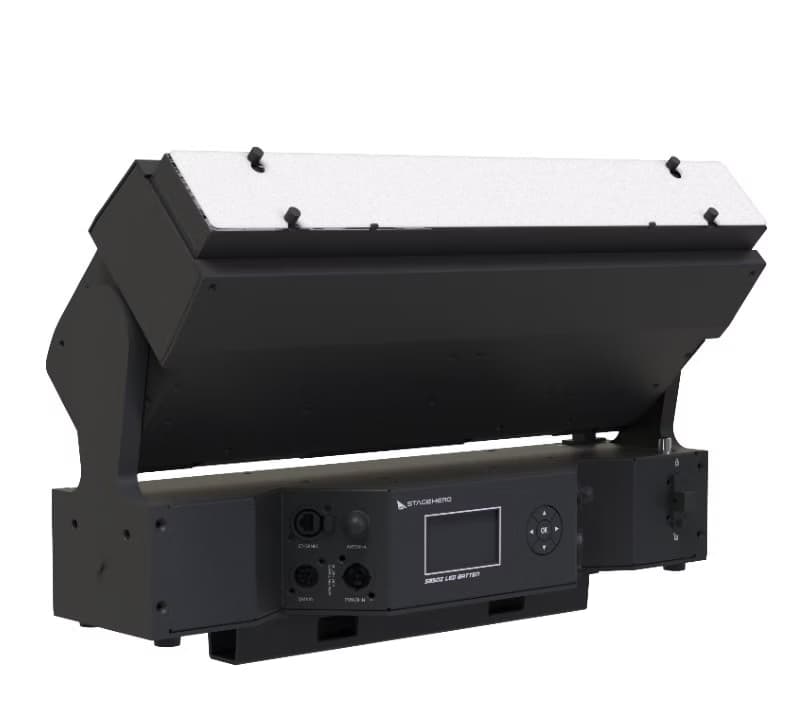

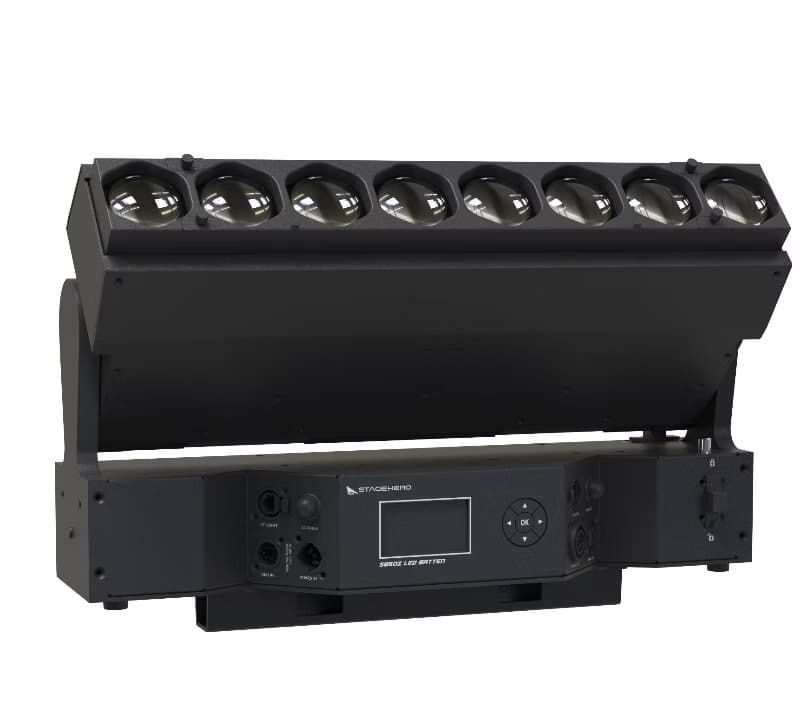

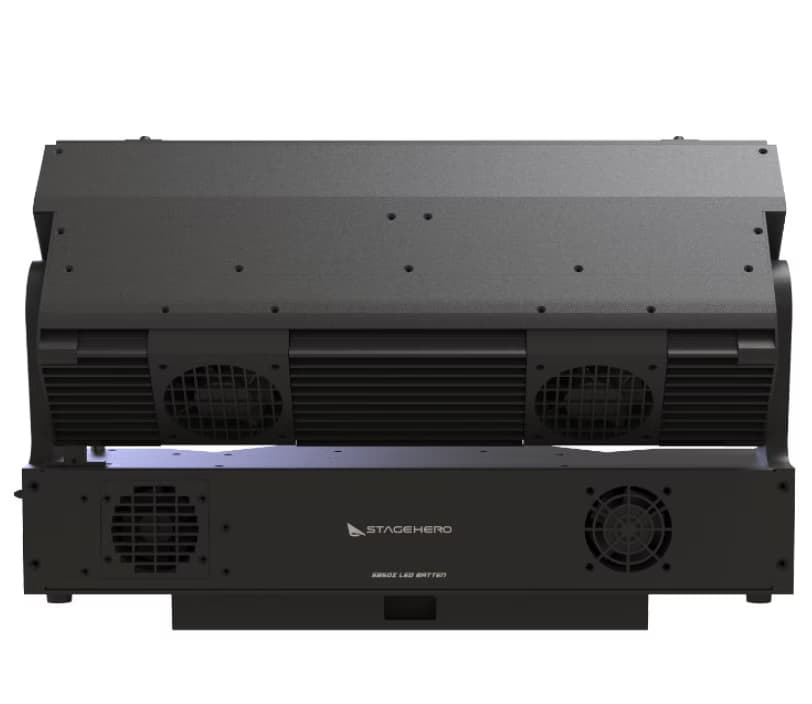

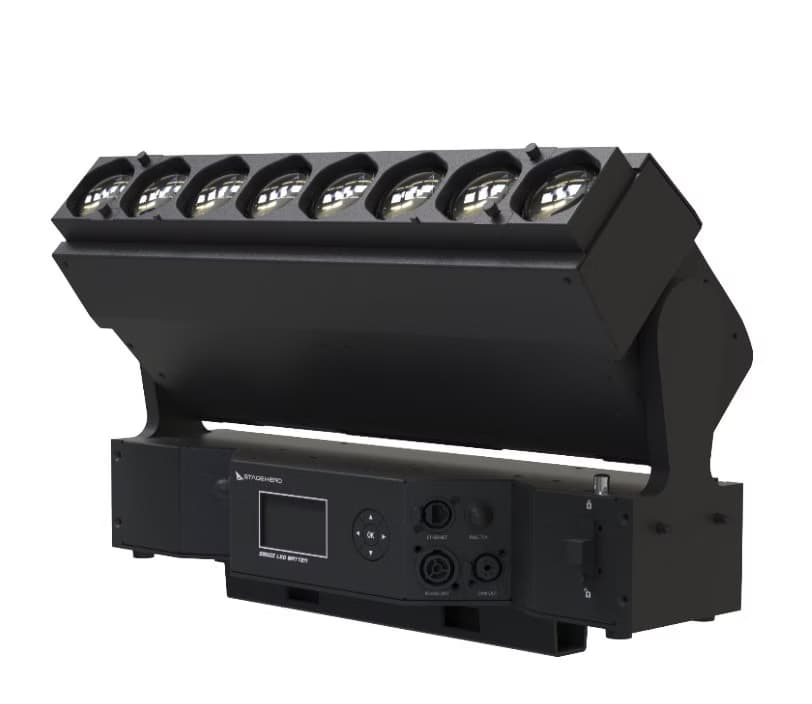

S850Z LED Batten
BEAM | WASH | PIXEL
Overview
The S850Z LED Batten is designed to go big in large scenes as you can horizontally connect fixtures next to each other, with exact same spacing between pixels, creates a visual effect in a continuous length in meters. Coupled with the ultra-narrow 3.95° beam, a countless quantity of beams at present, and in different colors, too. The wide zoom range from 3.95° to 50° is not only exceptional in its flexibility, but also in speed. Combined with the fast tilt effect in 210° can create a very nice in-air effects.
Features
- 8 x Osram® 60W RGBW LEDs
- 3.95 ° ~ 50° wide range for beam & wash.
- Ultra fast Zoom and Tilt effect
- Compact size with incredible light output.
Light Source
- 8 x Osram® 60W RGBW LEDs
- 13,100 Lumens output
- Led Life Expectancy: approx. 50.000 hours
Optical System
- Efficient optical system, ratio 12 :1
- Zoom range 3.95° - 50°
- Linear & fast motorized zoom
Functions
- Full Pixel Control
- 0-100% Linear dimming
- Selectable dimmer curves + dimmer speeds.
- Selectable PWM Modes, flicker-free
- Pre-programmed random strobe & pulse effects
- Built-in Animation effects for easy programing of all pixels
- 2 x Ethernet ports for switching and bypass.
- Built-in Battery for easy fixture setup.
Movement
- High precision stepping motors
- 16-bit Tilt control
- Position Feedback, auto correction.
- Tilt movement range: 210°
Thermal
- Maximum ambient temperature: 45° C (113° F)
- Minimium ambient temperature: -10° C (14° F)
- Adaptive temperature control for highest efficiency
- 5 selectable fan modes
- Fan monitoring / RPM feedback
Control and programming
- Setting & Addressing: 2.8" LCD with 5 navigation input buttons
- Protocol: USITT DMX-512, ArtNet & sACN
- DMX-RDM compatible
- Optional wireless DMX (CRMX Timo 2 / W-DMX)
- 2 DMX protocol modes
- Control channels: 16/ 22 / 38 / 46 / 54 / 86
- Stand-alone mode
- DMX In/Out: XLR-5, Ethernet
Electrical Specification
- Electronic switching power supply with auto-sensing, Active PFC
- Input voltage: 100-240 V, 50/60 Hz
- Max. power consumption: 400 W
- Power in connector: Neutrik powerCON True1
Mechanical Specification
- Height: 318 mm
- Width: 504 mm
- Depth: 143 mm
- Weight: 11.5 kg
Rigging
- 1 x Omega ¼ turn brackets
- 2 mounting points
- 1 attachment points for safety wire
Included accessories
- 1 x Omega brackets
- 1 x Power cable with Neutrik PowerCon True1 connector
